Technical details

Item no.: 5231247
Data sheet (277 kB)
User manual (11.8 MB)
All downloads

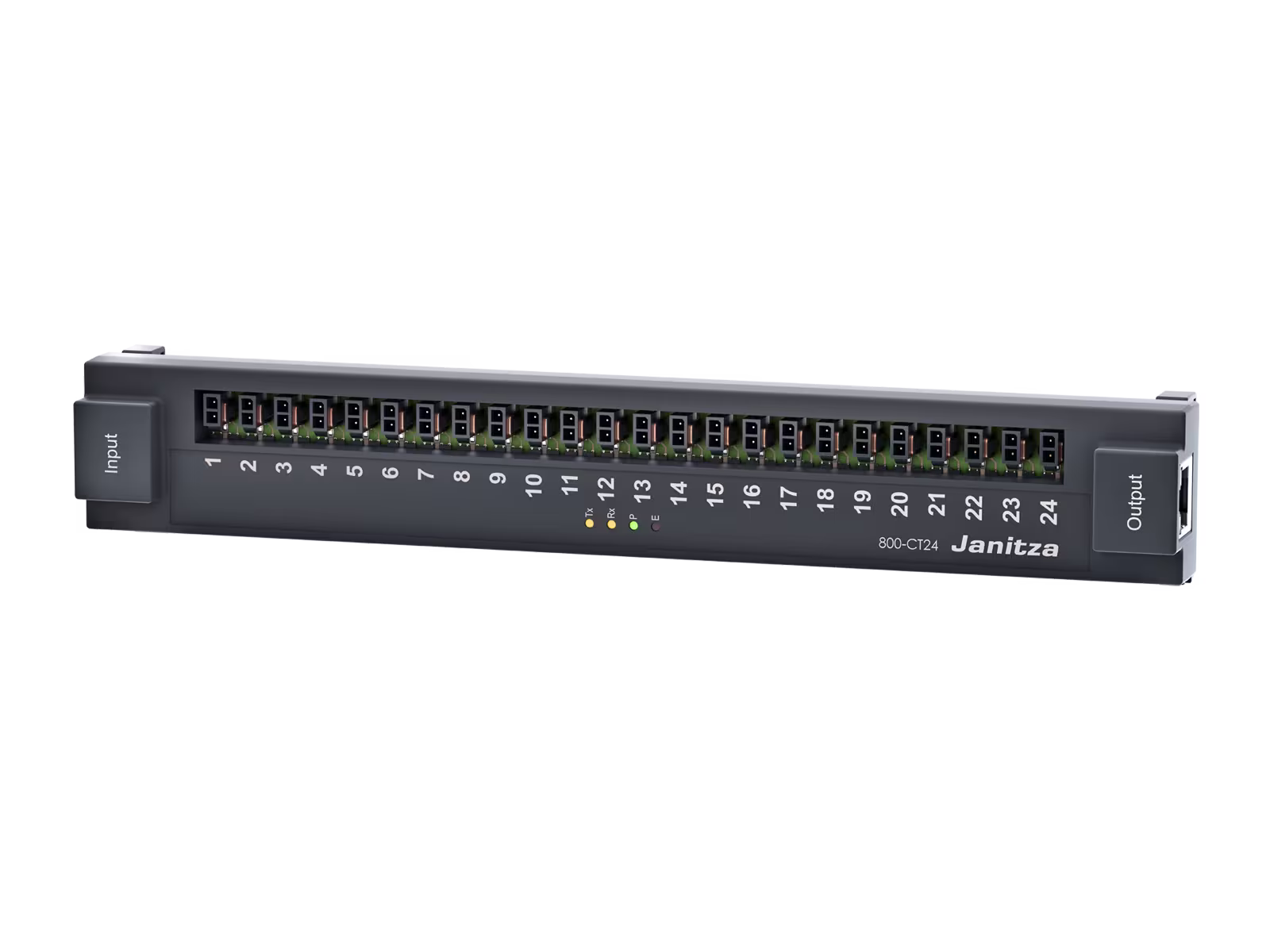

Janitza Modul-800-CT24 Left

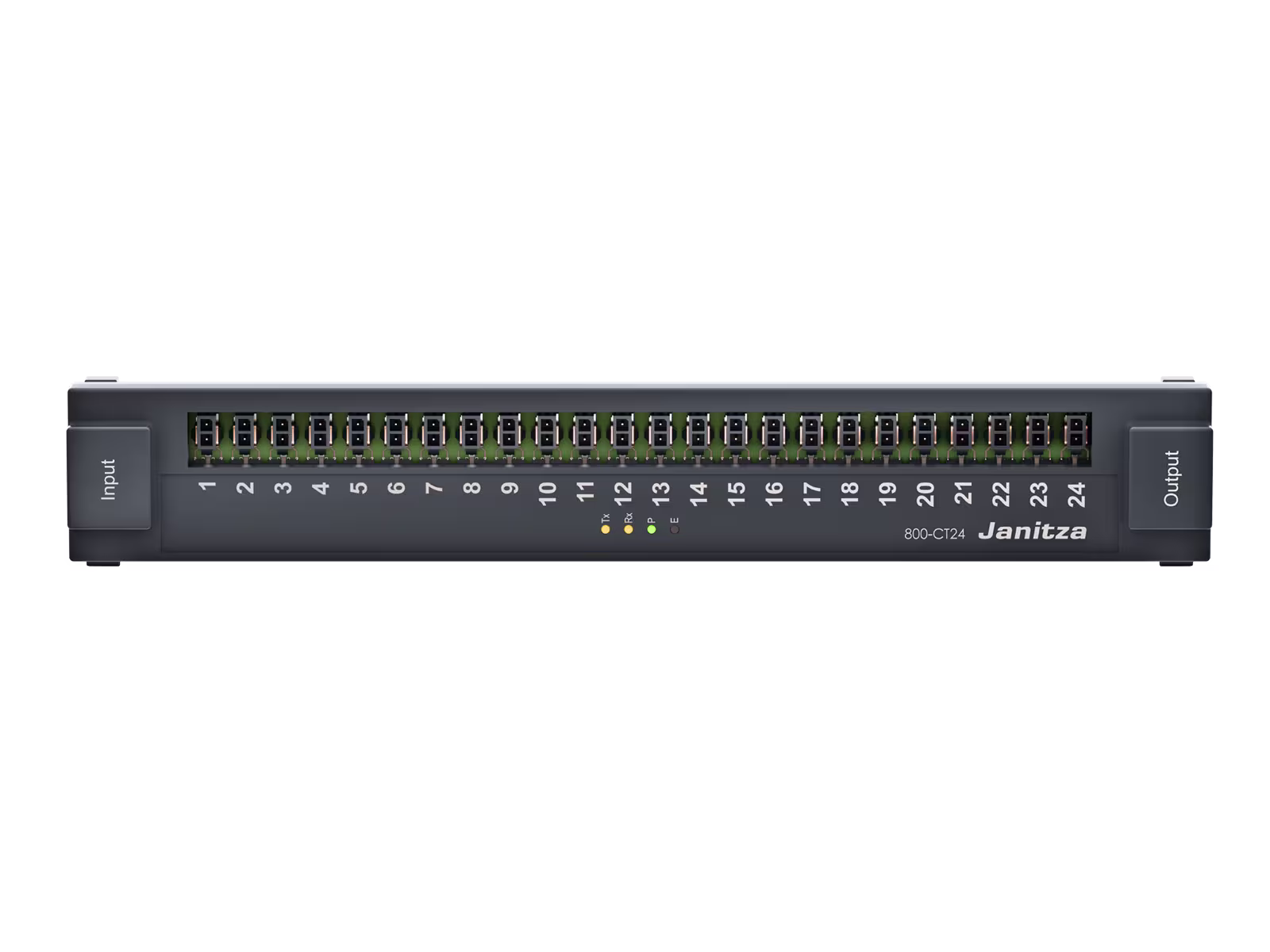

Janitza Modul-800-CT24 Front

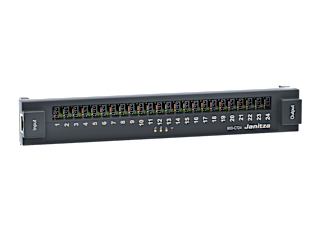

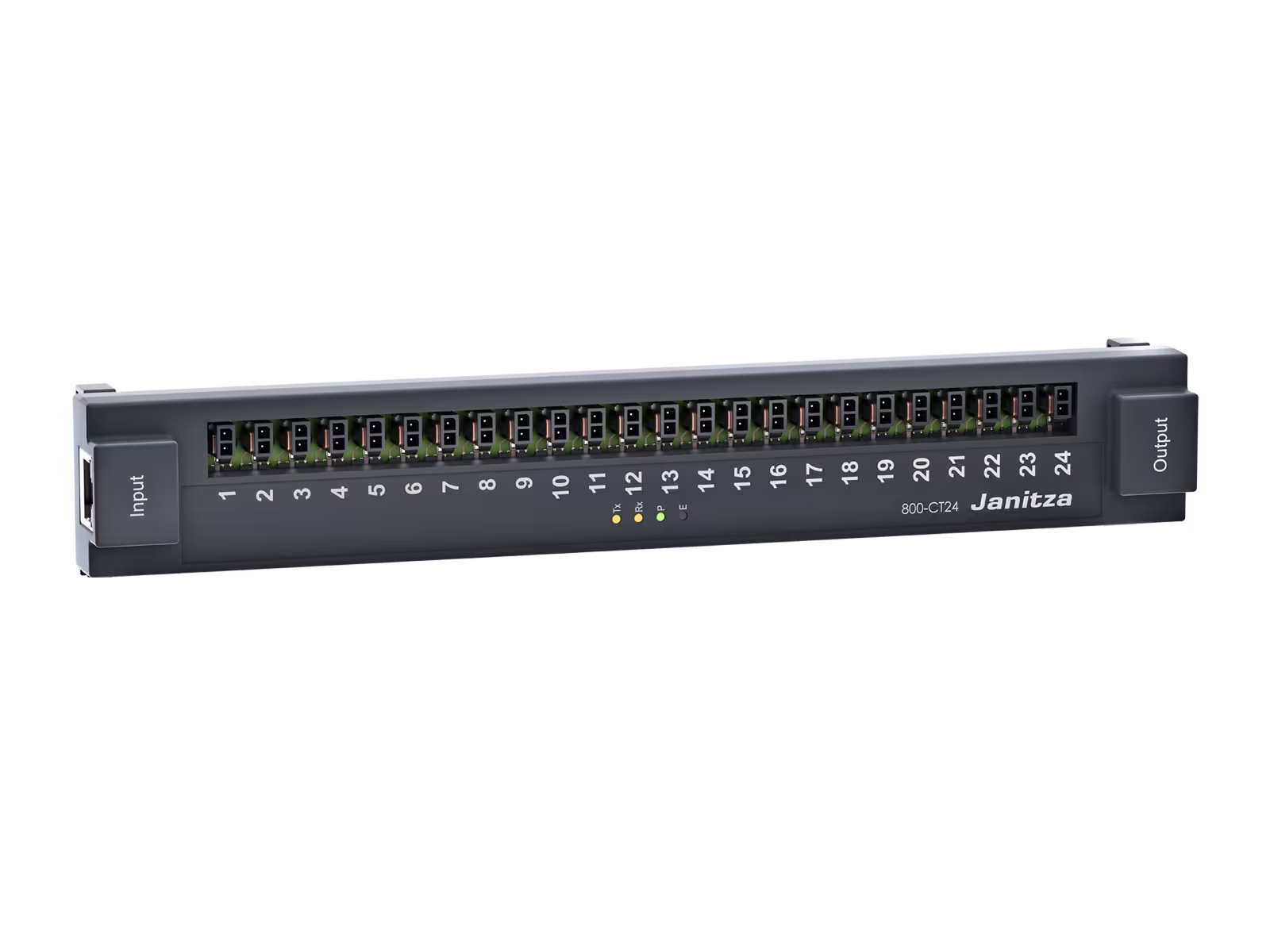

Janitza Modul-800-CT24 Right

Data at a glance

Certifications

  • UL certified

Sampling rate 50/60 Hz

8.33 kHz

Effective value from periods (50/60 Hz)

10/12

Current measuring channels

24

Harmonics V / A

1st, 3rd, 5th … 15th

Distortion factor THD-U/THD-I in %

only THD-I

GridVis® Items

3

Other properties

  • Memory min. / max. values (on the base unit)

Integrated functions

  • Clock (on the base device)

Interfaces

  • RS485 (on the base device)
  • Ethernet (on the base device)

Protocols

  • Modbus RTU (on the base unit)
  • productProtocols.modbusTCPIPBaseDevice
  • Modbus RTU over Ethernet (on the base unit)
