Technical details
Item no.: see product variants
Data at a glance
Product variants
Item no.: 1401359
Description
Pulse output, B24 311-10JSpecification
Current transformer, 3-phase (3 + N), 65 A, 1 x S0Item no.: 1401355
Description
Pulse output, M-Bus B21 313-10JSpecification
Energy meter, 1-phase, 65 A, 1 x S0, 1 x M-BusItem no.: 1401354
Description
Pulse output, RS485 B21 312-10JSpecification
Energy meter, 1-phase, 65 A, 1 x S0, 1 x RS485Item no.: 1401353
Description
Pulse output, B21 311-10JSpecification
Energy meter, 1-phase, 65 A, 1 x S0Item no.: 1401357
Description
Pulse output, RS485 B23 312-10JSpecification
3-phase electricity meter, 65 A, 1 x S0, 1 x RS485Item no.: 1401360
Description
Pulse output, RS485 B24 312-10JSpecification
Current transformer, 3-phase (3 + N), 65 A, 1 x S0, 1 x RS485Item no.: 1401356
Description
Pulse output, B23 311-10JSpecification
3-phase electricity meter, 65 A, 1 x S0Item no.: 1401361
Description
Pulse output, M-Bus B24 313-10JSpecification
Current transformer, 3-phase (3 + N), 65 A, 1 x S0, 1 x M-BusItem no.: 1401358
Description
Pulse output, M-Bus B23 313-10JSpecification
3-phase electricity meter, 65 A, 1 x S0, 1 x M-BusItem no.: 1401505
Description
EMD 485-P1Specification
Energy meter, 1-phase, 100 A (Modbus)Item no.: 1401507
Description
EMD 485-CT3-ASpecification
Current transformer, 3-phase, 1/5 A (Modbus)Item no.: 1401506
Description
EMD 485-P3Specification
3-phase electricity meter, 100 A (Modbus)Item no.: 1401501
Description
EMD 485-P1Specification
Energy meter, 1-phase, 100 A (Modbus), ULItem no.: 1401502
Description
EMD 485-P3Specification
3-phase electricity meter, 100 A (Modbus), ULItem no.: 1401503
Description
EMD 485-CT3-ASpecification
Current transformer, 3-phase, 1/5 A (Modbus), ULFunctions and features
MID energy meters – EMD-Series to 480 V TN/TT
- Energy meter, single-phase (1 + N) and three-phase (3 + N)
- With measured values and alarm function
- Width: 2 DIN modules and 4 DIN modules
- Tested and approved according to MID, IEC and UL
- Pulse output included
Topology
Easy system integration and incorporation
MID-Energy Meter B24 - Three-phase energy meter, CT measurement (3 + N)
- Transformer connection CT, 1(6) A
- Transformer ratio freely adjusted up to 9999/1-6
- With measured values and alarm function
- For 3-conductor and 4-conductor connection
- Optional interfaces: M-Bus, RS-485 (Modbus RTU)
- Width, 4 DIN modules
- Tested and approved per MID and IEC
- Pulse output included
MID-Energy Meter B23 - Three-phase energy meter, direct measurement (3 + N)
- Direct connection up to 65 A
- With measured values and alarm function
- For 3-conductor and 4-conductor connection
- Optional interfaces: M-Bus, RS-485 (Modbus RTU)
- Width, 4 DIN modules
- Tested and approved per MID and IEC
- Pulse output included

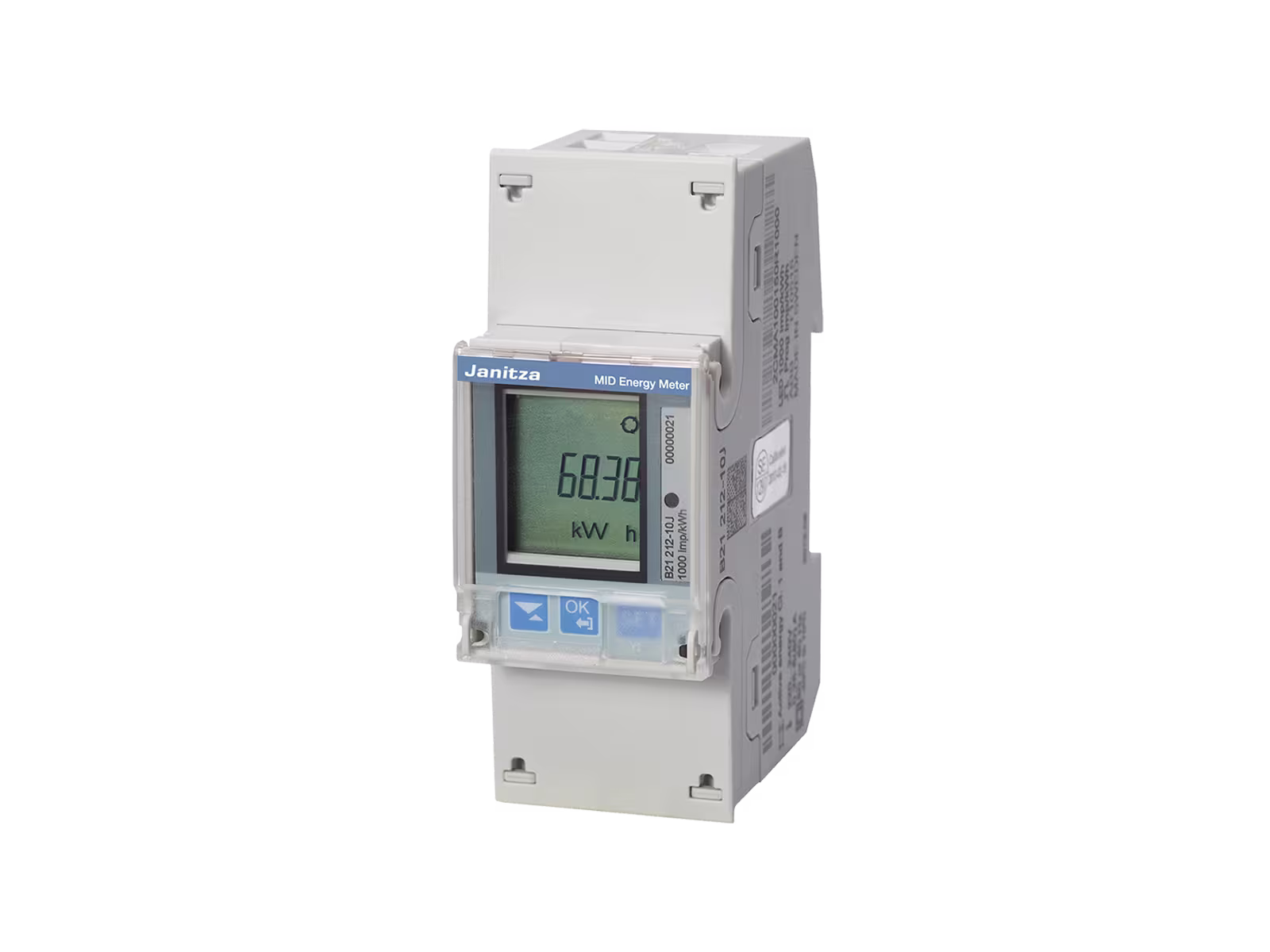

MID-Energy Meter B21 - Single-phase energy meter (1 + N)
- Direct connection up to 65 A
- With measured values and alarm function
- Optional interfaces: M-Bus, RS-485 (Modbus RTU)
- Width, 2 DIN modules
- Tested and approved per MID and IEC
- Pulse output included
