UMG 96RM
- RS485

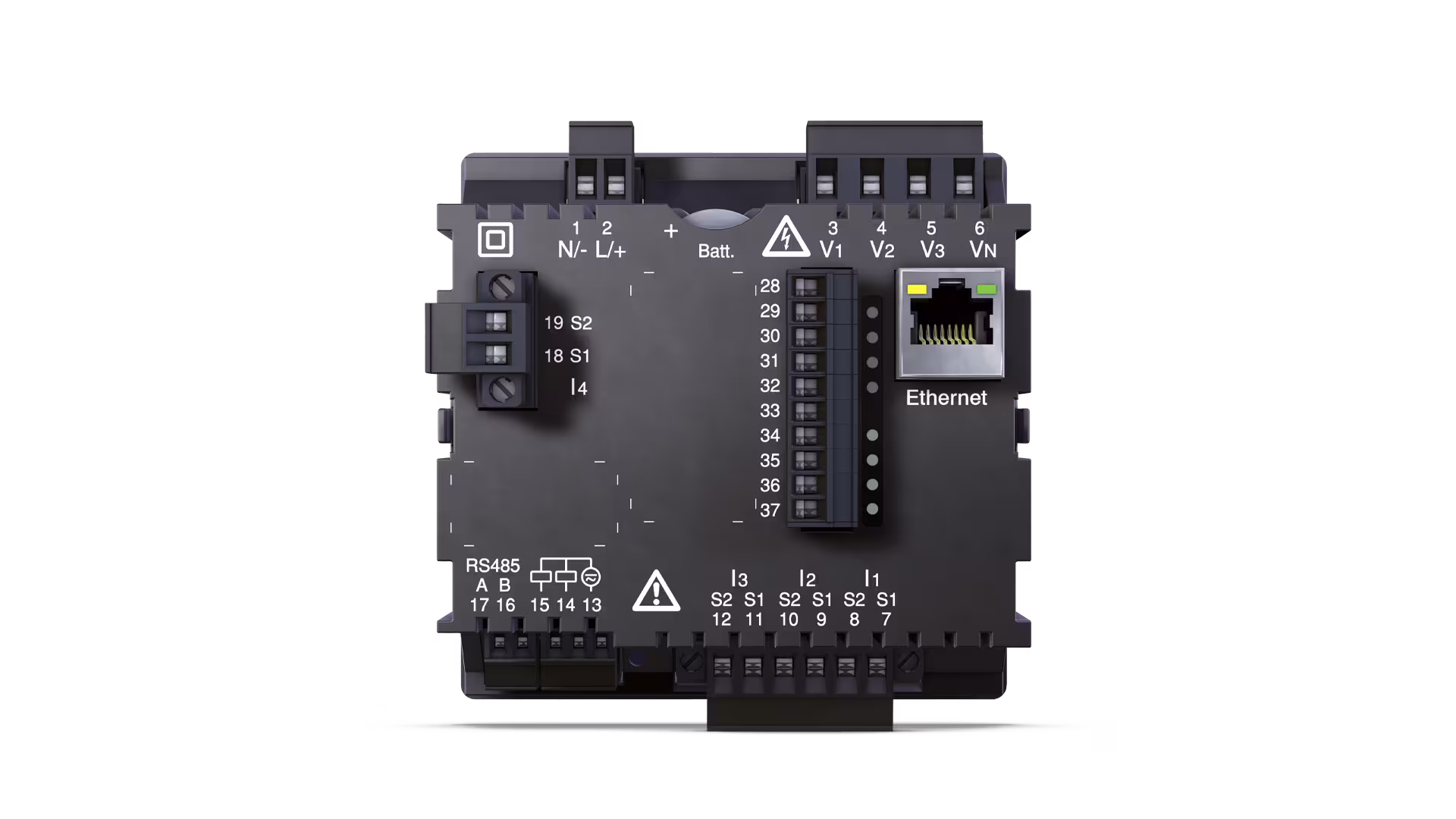

The multi-functional UMG 96RM-E power analyzer monitors and measures residual currents whilst enabling the measurement and calculation of electrical variables.
Energy management
Comprehensive energy measurement data, high accuracy: 0.5S active energy
Display
Simple 2-key operation / LED backlight
Communication
RS485, Ethernet
The UMG 96RM-E measures harmonics current up to the 40th harmonic and has a measurement data storage with 256 MB. The multifunctional network analyzer has two digital outputs and three digital inputs and outputs that can be defined as required.
Main features of the UMG 96RM-E
Memory
Many UMG measurement devices have their own memory with typical record ranges of up to 2 years. Recording is freely configurable. A 128 MByte memory can store around 5,000,000 memory values, a 256 MByte memory can store around 10,000,000 memory values.
Alarm management
The GridVis® alarm management system monitors all measurement parameters obtained by the UMG measurement devices. It includes escalation management, logbook function and user management for individual notifications by e-mail, pop-up window on the monitor, etc.
Residual current (RCM)
Powerful residual current monitoring (RCM) detects residual currents at the initial stage, before they lead to system failures or even fires. Continuous RCM monitoring significantly increases system safety and availability.
Device homepage
The web server on the measurement device provides a wide range of data in a clearly structured format. Users do not need to install any software on their PC, a standard web browser is sufficient.
Ethernet Modbus gateway
Modbus RTU devices that are connected to the master device as slaves can be very easily integrated into an Ethernet architecture via the Ethernet Modbus gateway. For devices with an identical file format and matching function codes, this is possible directly via the Modbus RTU interface.
BACnet
BACnet is one of the most important communication standards for building services engineering, primarily because of its compatibility with a wide variety of hardware and uniform, cross-vendor communication. As soon as a UMG measurement device has received its BACnet ID and is integrated into the network, it is recognized by the system and displayed in the browser.
Areas of application of the UMG 96RM-E
- Measurement, monitoring and control of electrical characteristics in energy distribution systems.
- Recording of load profiles in energy management systems (e.g. ISO 50001)
- Recording energy consumption for cost center analysis
- Transducer for building management system or PLC (Modbus)
- Monitoring of power quality ratings, e.g. harmonics currents up to the 40th harmonic
- Residual current monitoring
Current transformer and accessories
Plug-in current transformer Class 0.5 ... / 5 A
Plug-in current transformer Class 1 ... / 5 A
Type KUW split core current transformer
Compact current transformer, type CT27, Cl. 1
DIN rail current transformer with voltage tap-off & back-up fuse, Cl. 0.5 & 1
Separable current transformer, type KBU, Cl. 0.5 and 1
Plug-in residual current transformer, type A
Residual current transformer, type A
Residual current transformer, type B
Separable residual current transformer, type KBU
Separable residual current transformer, type CT-AC
Summation current transformer for split core current transformer Class 1
Summation current transformer for plug-in and split transformer Class 1 & Class 0.5
Three-phase current transformer, type ASRD 14, Cl. 0.5 and 1
